RUYAGE UV5D 10W IP67 Waterproof 6-Band Walkie Talkie

RUYAGE UV5D 10W IP67 Waterproof 6-Band Analog Radio

The RUYAGE UV5D is a rugged 10W IP67 waterproof 6-band analog walkie talkie designed for outdoor activities, radio enthusiasts, field operations, and professional communication.

It combines four programmable transmit-and-receive frequency ranges with receive-only AM airband and FM broadcast coverage. With 256 channels, a large LCD display, a 2600mAh rechargeable battery, and an included programming cable, the UV5D provides flexible communication and monitoring functions in one handheld radio.

Important: The six supported frequency ranges do not all support transmission. The 108–136 MHz AM airband range and 65–108 MHz FM broadcast range are receive only.

Key Features

Up to 10W Analog Radio Output

The UV5D features manufacturer-rated RF output of up to 10W for strong analog radio performance on supported and authorized frequencies.

• Adjustable power for different operating environments
• Suitable for local team and outdoor communication
• Direct radio communication without cellular service or WiFi
• No SIM card or monthly service plan required

Actual RF output may vary depending on the selected frequency, power setting, battery charge, antenna, and regional configuration.

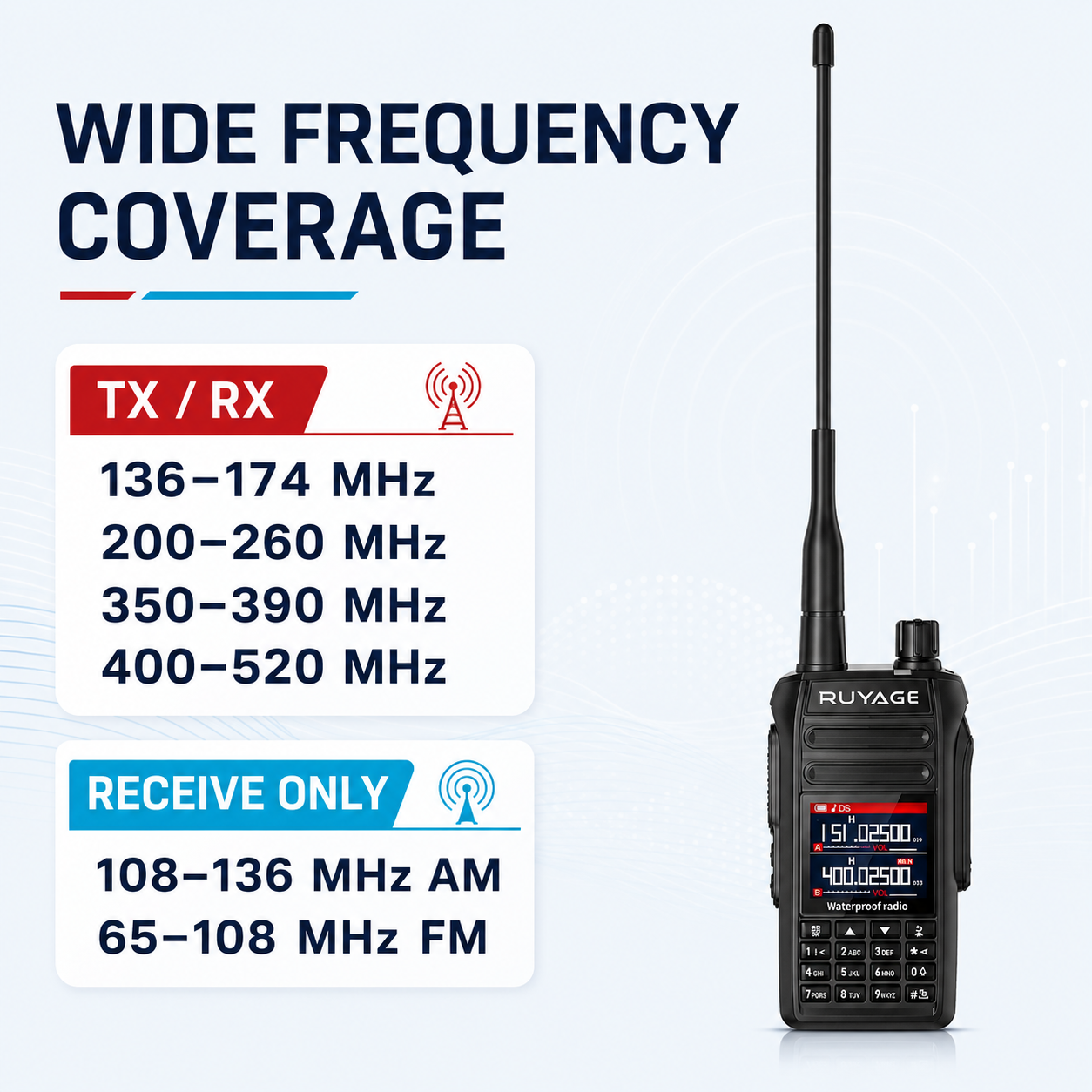

Six-Band Frequency Coverage

The RUYAGE UV5D supports six frequency ranges for flexible analog communication and signal reception:

• 136–174 MHz: analog transmit and receive
• 200–260 MHz: analog transmit and receive
• 350–390 MHz: analog transmit and receive
• 400–520 MHz: analog transmit and receive
• 108–136 MHz: AM airband receive only
• 65–108 MHz: FM broadcast receive only

Transmit capability does not mean that every frequency may legally be used. Users must operate only on frequencies, power levels, and radio services authorized in their country or region.

AM Airband Reception

The UV5D supports 108–136 MHz AM receive-only coverage, allowing users to receive compatible airband signals within the supported range.

The radio cannot transmit on the airband range. Signal availability depends on location, distance from the transmitter, antenna position, terrain, and local radio activity.

Compatible Analog Public-Safety Signal Reception

The UV5D may receive compatible, unencrypted analog public-safety transmissions that fall within its supported receive ranges.

It is not a dedicated digital trunking scanner and cannot decode encrypted, digital, or unsupported trunked radio systems. Many modern police and emergency communication systems may therefore not be receivable with this radio.

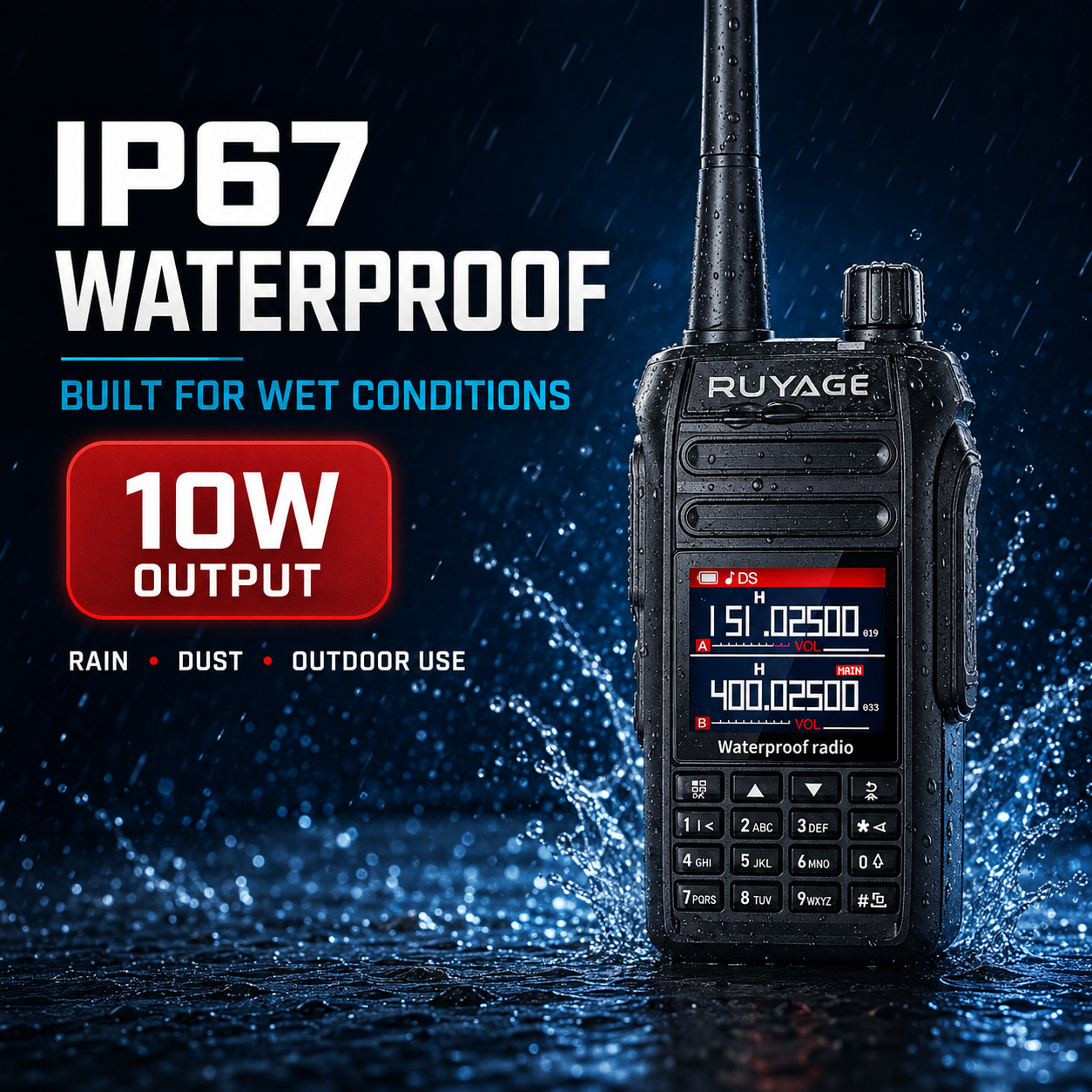

IP67 Waterproof and Dust-Resistant Protection

The IP67-rated housing is designed to protect the radio against dust and temporary water exposure under controlled test conditions. It is suitable for rain, wet job sites, hiking, camping, fishing, and demanding outdoor environments.

• Dust-resistant rugged enclosure
• Protection against rain and accidental water exposure
• Suitable for outdoor and field use
• Sealed accessory-port cover

For effective protection, all covers must be fully closed and undamaged. The UV5D is not intended for diving or prolonged underwater use. Do not charge the radio while it is wet.

Up to 6.2 Miles in Ideal Open Conditions

Communication distance may reach up to approximately 6.2 miles or 10 kilometers under ideal, unobstructed line-of-sight conditions.

Actual range is normally shorter in cities, buildings, forests, vehicles, mountains, and other environments containing obstacles or radio interference. Output power alone does not guarantee a specific communication distance.

256 Programmable Channels

Store and organize up to 256 channels for different teams, frequencies, and operating requirements. The included K-type programming cable provides convenient access to compatible programming software.

Programming software compatibility and available functions may depend on the radio version and computer operating system.

2600mAh Rechargeable Battery

The supplied 2600mAh lithium-ion battery provides dependable power for daily communication and outdoor activities.

• Rechargeable and removable battery
• Desktop charging cradle included
• Suitable for extended field and daily use

Operating and standby time vary according to transmit power, communication frequency, battery condition, signal environment, screen usage, and operating temperature.

Large LCD Display and Keypad

The large LCD display shows operating frequencies, channel information, battery level, power setting, and other radio status information. The full keypad makes frequency entry and menu navigation more convenient.

Frequency Coverage

*Hardware frequency support is based on the manufacturer-listed configuration. Actual availability may differ by regional version and programming. Transmission is permitted only on frequencies for which the user and equipment are legally authorized.

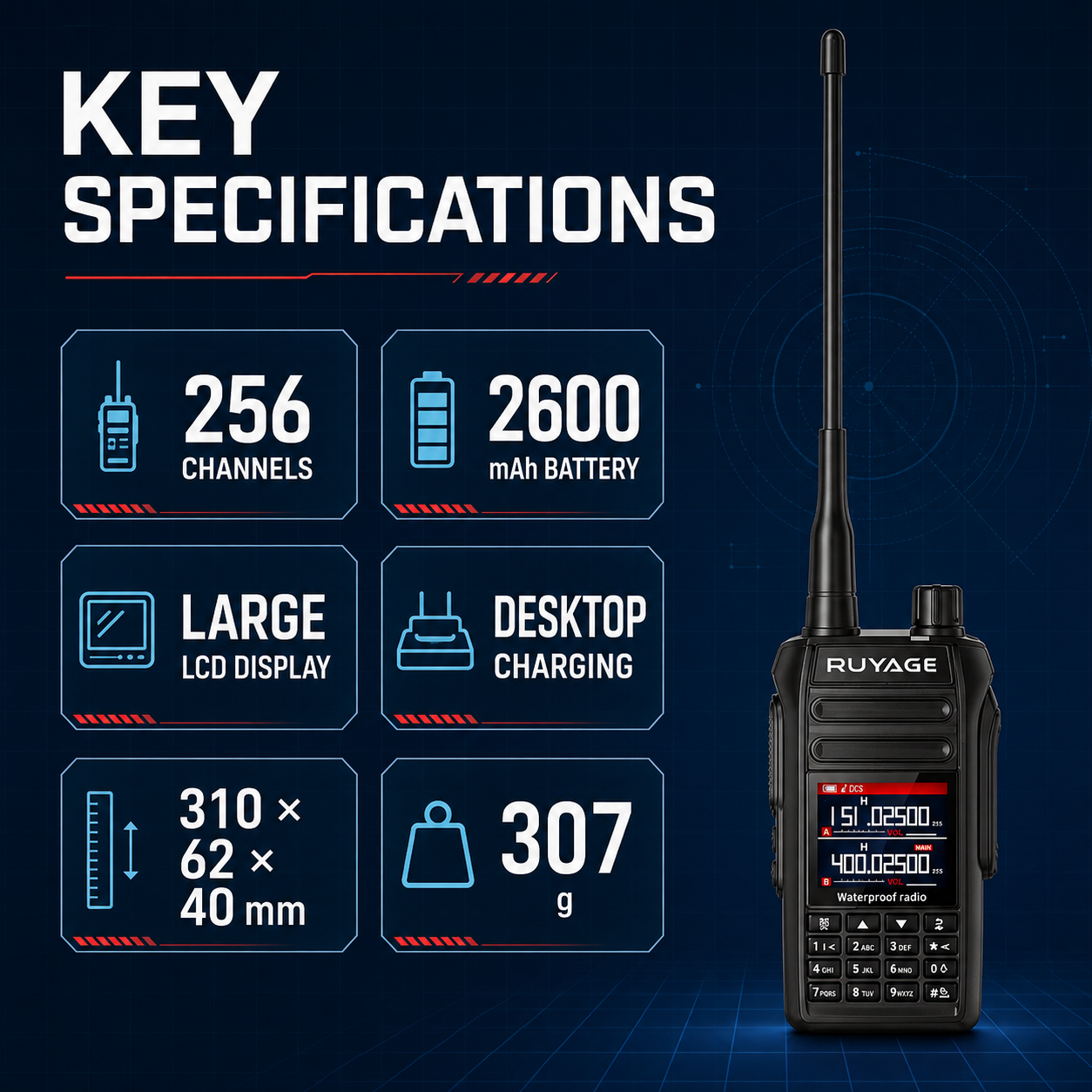

RUYAGE UV5D Specifications

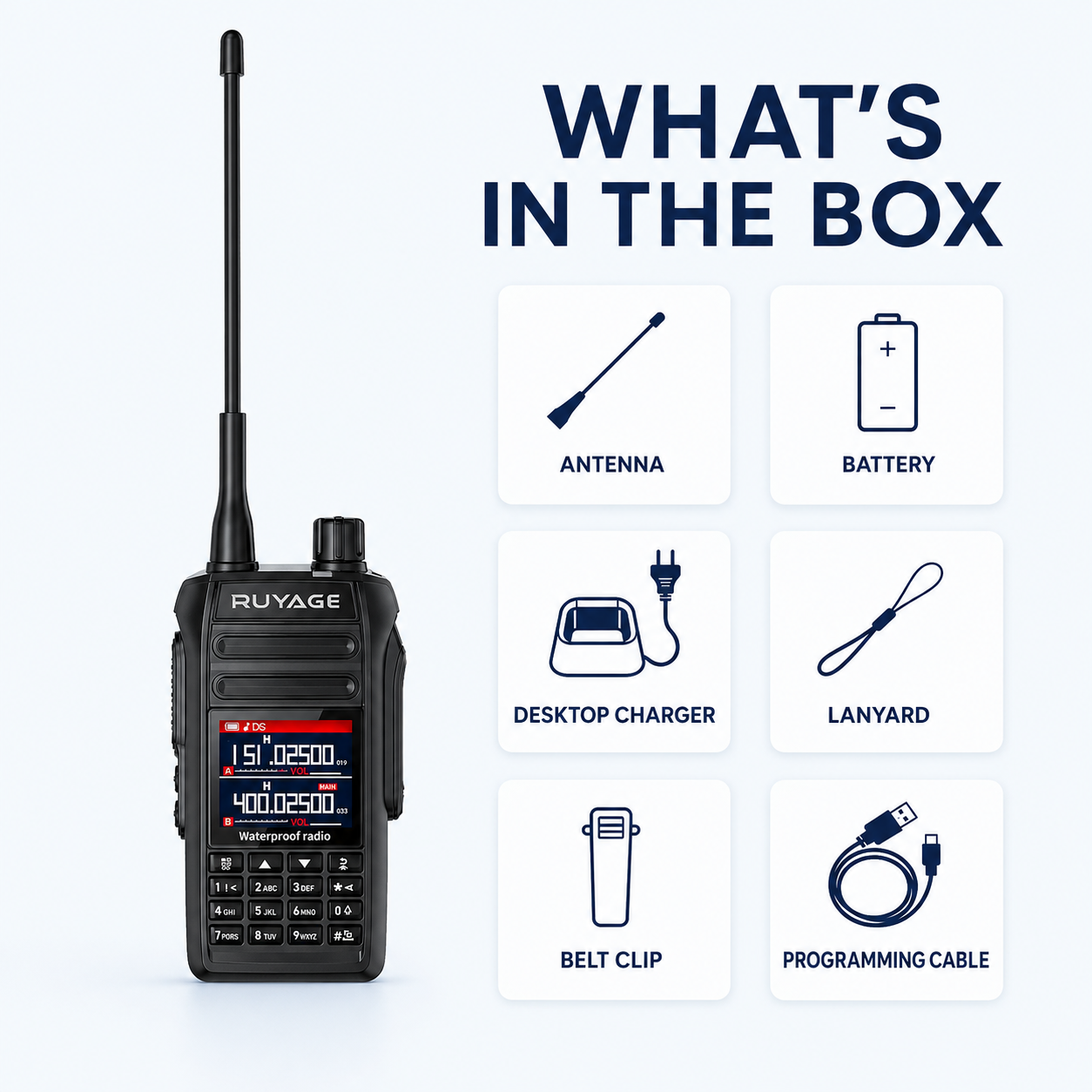

Package Includes

• 1 × RUYAGE UV5D 10W 6-Band Analog Radio
• 1 × Antenna
• 1 × 2600mAh Rechargeable Battery
• 1 × Desktop Charging Cradle and Power Adapter
• 1 × Belt Clip
• 1 × Lanyard
• 1 × K-Type Programming Cable
• 1 × User Manual

Power adapter type and packaging may vary by destination or product version.

Ideal Applications

• Hiking, camping, fishing, and outdoor adventures
• Radio monitoring and hobby use where legally permitted
• Licensed amateur radio operation
• Authorized business and team communication
• Event and field coordination
• Emergency preparedness
• Property, farm, and facility communication

Frequently Asked Questions

Is the UV5D a six-band transmitting radio?

Not on all six ranges. Four listed ranges support hardware transmit-and-receive operation, while 108–136 MHz AM airband and 65–108 MHz FM broadcast are receive only. Transmission remains subject to local licensing and equipment requirements.

Can the UV5D receive aircraft communications?

The UV5D supports AM reception from 108–136 MHz. Reception depends on local activity, distance, terrain, antenna position, and signal strength. The airband range is receive only.

Can the UV5D receive police or public-safety communications?

It may receive compatible unencrypted analog signals that fall within its supported receive ranges. It cannot decrypt encrypted traffic and is not designed to decode digital trunked radio systems. Compatibility with local police or public-safety systems is not guaranteed.

Does 10W guarantee a 10-kilometer range?

No. The advertised 10-kilometer range applies only to favorable, unobstructed conditions. Buildings, terrain, vehicles, antenna position, interference, and weather can significantly reduce actual range.

Is the UV5D completely waterproof?

The UV5D has an IP67-rated design for dust and temporary water exposure when all covers are properly closed. It is not intended for diving, prolonged submersion, or charging while wet.

Can the UV5D communicate with other analog radios?

It may communicate with compatible analog radios when both devices are legally programmed to the same frequency, channel bandwidth, modulation, and CTCSS/DCS settings.

Does the UV5D require a SIM card or mobile network?

No. The UV5D communicates directly through analog radio frequencies and does not require cellular service, WiFi, or a monthly subscription.

Frequency and Compliance Notice

The UV5D is a programmable transmitting device. The ability to enter or receive a frequency does not mean that transmission or monitoring is permitted in every location.

Users are responsible for operating only on frequencies, power levels, bandwidths, and radio services authorized by local regulations. Never transmit on aviation, public-safety, emergency, marine, broadcast, or other restricted frequencies without the required authorization. Local laws may also restrict interception or disclosure of non-broadcast communications.

Before purchasing or programming the radio, confirm that the selected product version, frequency configuration, and equipment certification are suitable for your country.
